Serial Console / Boot Log

You insert the µSD card with newest image, apply power to your Openvario and wait a few seconds for bootlogo or Tuxes to appear, but nothing happens …

Even without any screen connected we can check on the serial console if the system boots. Remove the housing lower cover to get access to the UART0 pins on the Cubieboard and connect jumper wires for RX, TX and GND to a 3.3V TTL serial to USB converter. Do not connect anything to the Vcc pin! Since you access UART0 directly on the Cubieboard this works even if you messed up the level converters on the adapterboard, the RJ45 board or the ribbon cable connecting them.

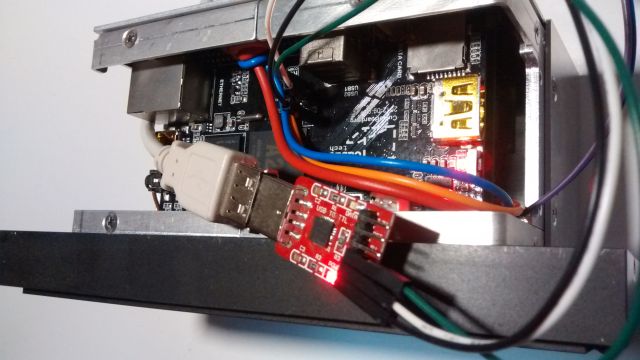

If your adapterboard and RJ45 board work there is no need to open the housing, you can access the serial console on the UART0 RJ45 connector. Use a serial cable for a logger (Volkslogger, Flarm, etc.) and a Nullmodem cable/adapter (the orange colored part in the picture below) to connect to your computer.

Find the COM port of your serial to USB adapter and open a terminal on your computer (Hyperterm or Putty on Windows, screen /dev/ttyUSB0 115200 on Linux). Apply power to the Cubieboard and check the boot log.

Now you can see your Openvario booting even without LCD attached

See a full bootlog at the bottom of this page.

For more details and pictures see linux-sunxi.org/Cubieboard/TTL.

Back to Electrical Tests

=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2015.12.07 22:18:35 =~=~=~=~=~=~=~=~=~=~=~=

U-Boot SPL 2015.07-g33711bd (Oct 04 2015 - 12:50:15)
DRAM: 1024 MiB
CPU: 912000000Hz, AXI/AHB/APB: 3/2/2



U-Boot 2015.07-g33711bd (Oct 04 2015 - 12:50:15 +0200) Allwinner Technology


CPU:   Allwinner A20 (SUN7I)

I2C:   ready

DRAM:  1 GiB

MMC:   SUNXI SD/MMC: 0

*** Warning - bad CRC, using default environment


Setting up a 1024x600 lcd console

In:    serial

Out:   serial

Err:   serial

SCSI:  SUNXI SCSI INIT

SATA link 0 timeout.

AHCI 0001.0100 32 slots 1 ports 3 Gbps 0x1 impl SATA mode

flags: ncq stag pm led clo only pmp pio slum part ccc apst

Net:   eth0: ethernet@01c50000

starting USB...

USB0:   USB EHCI 1.00

USB1:   USB OHCI 1.0

USB2:   USB EHCI 1.00

USB3:   USB OHCI 1.0

scanning bus 0 for devices... 1 USB Device(s) found

scanning bus 2 for devices... 1 USB Device(s) found

Hit any key to stop autoboot:  2  1  0

Try to load config.uEnv

Load config.uEnv ...

reading config.uEnv

11 bytes read in 22 ms (0 Bytes/s)

Try recoverboot from USB

** Bad device usb 0 **

No Recovery file found ...

Try to boot from mmc ...

reading ov_booting_0.bmp

1843254 bytes read in 120 ms (14.6 MiB/s)

reading script.bin

45688 bytes read in 29 ms (1.5 MiB/s)

reading uImage

4512400 bytes read in 240 ms (17.9 MiB/s)

## Booting kernel from Legacy Image at 42000000 ...

   Image Name:   Linux-3.4.90

   Image Type:   ARM Linux Kernel Image (uncompressed)

   Data Size:    4512336 Bytes = 4.3 MiB

   Load Address: 40008000

   Entry Point:  40008000

   Verifying Checksum ... OK

   Loading Kernel Image ... OK


Starting kernel ...


<6>Booting Linux on physical CPU 0

<6>Initializing cgroup subsys cpuset

<6>Initializing cgroup subsys cpu

<5>Linux version 3.4.90 (timo@build) (gcc version 4.9.3 20141031 (prerelease) (Linaro GCC 4.9-2014.11) ) #1 SMP PREEMPT Sat Oct 3 22:15:07 CEST 2015

CPU: ARMv7 Processor [410fc074] revision 4 (ARMv7), cr=10c5387d

CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache

Machine: sun7i

<6>Memory Reserved:

<6>	SYS  : 0x43000000 - 0x4300ffff  (  64 kB)

<6>	G2D  : 0x50000000 - 0x50ffffff  (  16 MB)

<6>	LCD  : 0x51000000 - 0x52ffffff  (  32 MB)

<6>cma: CMA: reserved 192 MiB at 43c00000

Memory policy: ECC disabled, Data cache writealloc

<6>sunxi: Allwinner A20 (AW1651/sun7i) detected.

<7>On node 0 totalpages: 262144

<7>free_area_init_node: node 0, pgdat c0873cc0, node_mem_map d3000000

<7>  DMA zone: 512 pages used for memmap

<7>  DMA zone: 0 pages reserved

<7>  DMA zone: 65024 pages, LIFO batch:15

<7>  Normal zone: 1008 pages used for memmap

<7>  Normal zone: 128016 pages, LIFO batch:31

<7>  HighMem zone: 528 pages used for memmap

<7>  HighMem zone: 67056 pages, LIFO batch:15

<6>PERCPU: Embedded 7 pages/cpu @d3808000 s7616 r8192 d12864 u32768

<7>pcpu-alloc: s7616 r8192 d12864 u32768 alloc=8*4096<c>

<7>pcpu-alloc: <c>[0] <c>0 <c>[0] <c>1 <c>

Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 260096

<5>Kernel command line: console=ttyS0,115200 root=/dev/mmcblk0p2 rootwait panic=10 fbcon=rotate:0

<6>PID hash table entries: 4096 (order: 2, 16384 bytes)

<6>Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)

<6>Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)

<6>allocated 2097152 bytes of page_cgroup

<6>please try 'cgroup_disable=memory' option if you don't want memory cgroups

<6>Memory: 1024MB = 1024MB total

<5>Memory: 780692k/780692k available, 267884k reserved, 270336K highmem

<5>Virtual kernel memory layout:

    vector  : 0xffff0000 - 0xffff1000   (   4 kB)

    fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)

    vmalloc : 0xf0000000 - 0xff000000   ( 240 MB)

    lowmem  : 0xc0000000 - 0xef800000   ( 760 MB)

    pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)

    modules : 0xbf000000 - 0xbfe00000   (  14 MB)

      .text : 0xc0008000 - 0xc07d9ea0   (8008 kB)

      .init : 0xc07da000 - 0xc080fdc0   ( 216 kB)

      .data : 0xc0810000 - 0xc087b340   ( 429 kB)

       .bss : 0xc087b364 - 0xc0a4b5d8   (1857 kB)

<6>SLUB: Genslabs=11, HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1

<6>Preemptible hierarchical RCU implementation.

<6>	RCU dyntick-idle grace-period acceleration is enabled.

<6>	Additional per-CPU info printed with stalls.

<6>NR_IRQS:192

<6>Architected local timer running at 24.00MHz.

<6>sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms

<2>start_kernel(): bug: interrupts were enabled early

<6>Console: colour dummy device 80x30

<6>Calibrating delay loop... <c>1816.98 BogoMIPS (lpj=9084928)

<6>pid_max: default: 32768 minimum: 301

<6>Mount-cache hash table entries: 512

<6>Initializing cgroup subsys cpuacct

<6>Initializing cgroup subsys memory

<6>Initializing cgroup subsys devices

<6>Initializing cgroup subsys freezer

<6>Initializing cgroup subsys blkio

<6>Initializing cgroup subsys perf_event

<6>CPU: Testing write buffer coherency: ok

<6>CPU0: thread -1, cpu 0, socket 0, mpidr 80000000

<6>hw perfevents: enabled with ARMv7 Cortex-A7 PMU driver, 5 counters available

<6>Setting up static identity map for 0x4057e298 - 0x4057e2f0

CPU1: Booted secondary processor

<6>CPU1: thread -1, cpu 1, socket 0, mpidr 80000001

<6>Brought up 2 CPUs

<6>SMP: Total of 2 processors activated (3640.52 BogoMIPS).

<6>devtmpfs: initialized

<6>dummy:

<6>NET: Registered protocol family 16

<6>DMA: preallocated 256 KiB pool for atomic coherent allocations

<6>hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.

<6>hw-breakpoint: maximum watchpoint size is 8 bytes.

<6>[ccu-inf] aw clock manager init

<6>[ccu-inf] aw_ccu_init

<6>[ccu-inf] script config pll3 to 297MHz

<6>[ccu-inf] script config pll4 to 300MHz

<6>[ccu-inf] script config pll6 to 600MHz

<6>[ccu-inf] script config pll7 to 297MHz

<6>[ccu-inf] script config pll8 to 336MHz

<6>Init eGon pin module V2.0

<6>bio: create slab <bio-0> at 0

<5>SCSI subsystem initialized

<7>libata version 3.00 loaded.

<6>usbcore: registered new interface driver usbfs

<6>usbcore: registered new interface driver hub

<6>usbcore: registered new device driver usb

<6>Linux media interface: v0.10

<6>Linux video capture interface: v2.00

<6>Advanced Linux Sound Architecture Driver Version 1.0.25.

<6>cfg80211: Calling CRDA to update world regulatory domain

<6>Switching to clocksource arch_sys_counter

<5>FS-Cache: Loaded

<6>CacheFiles: Loaded

<6>NET: Registered protocol family 2

<6>IP route cache hash table entries: 32768 (order: 5, 131072 bytes)

<6>TCP established hash table entries: 131072 (order: 8, 1048576 bytes)

<6>TCP bind hash table entries: 65536 (order: 7, 786432 bytes)

<6>TCP: Hash tables configured (established 131072 bind 65536)

<6>TCP: reno registered

<6>UDP hash table entries: 512 (order: 2, 16384 bytes)

<6>UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)

<6>NET: Registered protocol family 1

<6>RPC: Registered named UNIX socket transport module.

<6>RPC: Registered udp transport module.

<6>RPC: Registered tcp transport module.

<6>RPC: Registered tcp NFSv4.1 backchannel transport module.

<6>audit: initializing netlink socket (disabled)

<5>type=2000 audit(0.500:1): initialized

highmem bounce pool size: 64 pages

<5>VFS: Disk quotas dquot_6.5.2

Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)

<5>NFS: Registering the id_resolver key type

<6>NTFS driver 2.1.30 [Flags: R/W].

<6>fuse init (API version 7.18)

<6>msgmni has been set to 1380

<3>alg: comp: Compression test 1 failed for lzo-generic: output len = 57

<6>alg: No test for stdrng (krng)

<6>Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)

<6>io scheduler noop registered

<6>io scheduler deadline registered

<6>io scheduler cfq registered (default)

<6>sunxi disp driver loaded (/dev/disp api 1.0)

<6>Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled

<6>[uart]: used uart info.: 0x39

<6>[uart]: serial probe 0 irq 33 mapbase 0x01c28000

<6>sunxi-uart.0: ttyS0 at MMIO 0x1c28000 (irq = 33) is a U6_16550A

[    0.000000] Booting Linux on physical CPU 0
[    0.000000] Initializing cgroup subsys cpuset
[    0.000000] Initializing cgroup subsys cpu
[    0.000000] Linux version 3.4.90 (timo@build) (gcc version 4.9.3 20141031 (prerelease) (Linaro GCC 4.9-2014.11) ) #1 SMP PREEMPT Sat Oct 3 22:15:07 CEST 2015
[    0.000000] Memory Reserved:
[    0.000000] 	SYS  : 0x43000000 - 0x4300ffff  (  64 kB)
[    0.000000] 	G2D  : 0x50000000 - 0x50ffffff  (  16 MB)
[    0.000000] 	LCD  : 0x51000000 - 0x52ffffff  (  32 MB)
[    0.000000] cma: CMA: reserved 192 MiB at 43c00000
[    0.000000] sunxi: Allwinner A20 (AW1651/sun7i) detected.
[    0.000000] PERCPU: Embedded 7 pages/cpu @d3808000 s7616 r8192 d12864 u32768
[    0.000000] Kernel command line: console=ttyS0,115200 root=/dev/mmcblk0p2 rootwait panic=10 fbcon=rotate:0
[    0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[    0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[    0.000000] allocated 2097152 bytes of page_cgroup
[    0.000000] please try 'cgroup_disable=memory' option if you don't want memory cgroups
[    0.000000] Memory: 1024MB = 1024MB total
[    0.000000] Memory: 780692k/780692k available, 267884k reserved, 270336K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xf0000000 - 0xff000000   ( 240 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xef800000   ( 760 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .text : 0xc0008000 - 0xc07d9ea0   (8008 kB)
[    0.000000]       .init : 0xc07da000 - 0xc080fdc0   ( 216 kB)
[    0.000000]       .data : 0xc0810000 - 0xc087b340   ( 429 kB)
[    0.000000]        .bss : 0xc087b364 - 0xc0a4b5d8   (1857 kB)
[    0.000000] SLUB: Genslabs=11, HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] 	RCU dyntick-idle grace-period acceleration is enabled.
[    0.000000] 	Additional per-CPU info printed with stalls.
[    0.000000] NR_IRQS:192
[    0.000000] Architected local timer running at 24.00MHz.
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] start_kernel(): bug: interrupts were enabled early
[    0.000000] Console: colour dummy device 80x30
[    0.010880] Calibrating delay loop... 1816.98 BogoMIPS (lpj=9084928)
[    0.076005] pid_max: default: 32768 minimum: 301
[    0.079676] Mount-cache hash table entries: 512
[    0.083889] Initializing cgroup subsys cpuacct
[    0.087209] Initializing cgroup subsys memory
[    0.090632] Initializing cgroup subsys devices
[    0.094068] Initializing cgroup subsys freezer
[    0.097293] Initializing cgroup subsys blkio
[    0.100968] Initializing cgroup subsys perf_event
[    0.104548] CPU: Testing write buffer coherency: ok
[    0.109731] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.116835] hw perfevents: enabled with ARMv7 Cortex-A7 PMU driver, 5 counters available
[    0.122369] Setting up static identity map for 0x4057e298 - 0x4057e2f0
[    0.297271] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[    0.299279] Brought up 2 CPUs
[    0.304589] SMP: Total of 2 processors activated (3640.52 BogoMIPS).
[    0.307754] devtmpfs: initialized
[    0.313134] dummy:
[    0.323007] NET: Registered protocol family 16
[    0.344769] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.352567] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[    0.357358] hw-breakpoint: maximum watchpoint size is 8 bytes.
[    0.360544] [ccu-inf] aw clock manager init
[    0.362815] [ccu-inf] aw_ccu_init
[    0.366775] [ccu-inf] script config pll3 to 297MHz
[    0.370525] [ccu-inf] script config pll4 to 300MHz
[    0.374289] [ccu-inf] script config pll6 to 600MHz
[    0.378037] [ccu-inf] script config pll7 to 297MHz
[    0.381784] [ccu-inf] script config pll8 to 336MHz
[    0.384556] Init eGon pin module V2.0
[    0.392812] bio: create slab <bio-0> at 0
[    0.396233] SCSI subsystem initialized
[    0.403716] usbcore: registered new interface driver usbfs
[    0.408082] usbcore: registered new interface driver hub
[    0.412220] usbcore: registered new device driver usb
[    0.415310] Linux media interface: v0.10
[    0.418937] Linux video capture interface: v2.00
[    0.424498] Advanced Linux Sound Architecture Driver Version 1.0.25.
[    0.430521] cfg80211: Calling CRDA to update world regulatory domain
[    0.435037] Switching to clocksource arch_sys_counter
[    0.437119] FS-Cache: Loaded
[    0.439283] CacheFiles: Loaded
[    0.451740] NET: Registered protocol family 2
[    0.458090] IP route cache hash table entries: 32768 (order: 5, 131072 bytes)
[    0.465028] TCP established hash table entries: 131072 (order: 8, 1048576 bytes)
[    0.472566] TCP bind hash table entries: 65536 (order: 7, 786432 bytes)
[    0.479216] TCP: Hash tables configured (established 131072 bind 65536)
[    0.481420] TCP: reno registered
[    0.486298] UDP hash table entries: 512 (order: 2, 16384 bytes)
[    0.491648] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[    0.495257] NET: Registered protocol family 1
[    0.500575] RPC: Registered named UNIX socket transport module.
[    0.504237] RPC: Registered udp transport module.
[    0.507894] RPC: Registered tcp transport module.
[    0.513315] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.518753] audit: initializing netlink socket (disabled)
[    0.522511] type=2000 audit(0.500:1): initialized
[    0.538511] VFS: Disk quotas dquot_6.5.2
[    0.550651] NFS: Registering the id_resolver key type
[    0.555199] NTFS driver 2.1.30 [Flags: R/W].
[    0.558542] fuse init (API version 7.18)
[    0.561975] msgmni has been set to 1380
[    0.572909] alg: comp: Compression test 1 failed for lzo-generic: output len = 57
[    0.576116] alg: No test for stdrng (krng)
[    0.582846] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[    0.585737] io scheduler noop registered
[    0.588995] io scheduler deadline registered
[    0.592685] io scheduler cfq registered (default)
[    0.597503] sunxi disp driver loaded (/dev/disp api 1.0)
[    0.654624] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[    0.659268] [uart]: used uart info.: 0x39
[    0.663969] [uart]: serial probe 0 irq 33 mapbase 0x01c28000
[    0.690542] sunxi-uart.0: ttyS0 at MMIO 0x1c28000 (irq = 33) is a U6_16550A
<6>console [ttyS0] enabled

[    1.287802] console [ttyS0] enabled
<6>[uart]: serial probe 3 irq 36 mapbase 0x01c28c00

[    1.296135] [uart]: serial probe 3 irq 36 mapbase 0x01c28c00
<6>sunxi-uart.3: ttyS1 at MMIO 0x1c28c00 (irq = 36) is a U6_16550A

[    1.328278] sunxi-uart.3: ttyS1 at MMIO 0x1c28c00 (irq = 36) is a U6_16550A
<6>[uart]: serial probe 4 irq 49 mapbase 0x01c29000

[    1.340088] [uart]: serial probe 4 irq 49 mapbase 0x01c29000
<6>sunxi-uart.4: ttyS2 at MMIO 0x1c29000 (irq = 49) is a U6_16550A

[    1.372208] sunxi-uart.4: ttyS2 at MMIO 0x1c29000 (irq = 49) is a U6_16550A
<6>[uart]: serial probe 5 irq 50 mapbase 0x01c29400

[    1.383993] [uart]: serial probe 5 irq 50 mapbase 0x01c29400
<6>sunxi-uart.5: ttyS3 at MMIO 0x1c29400 (irq = 50) is a U6_16550A

[    1.416071] sunxi-uart.5: ttyS3 at MMIO 0x1c29400 (irq = 50) is a U6_16550A
<7>G2D: drv_g2d_init

<6>G2D: g2dmem: g2d_start=50000000, g2d_size=1000000

[    1.430271] G2D: g2dmem: g2d_start=50000000, g2d_size=1000000
<6>G2D: head:d0000000,tail:d1000000

[    1.439243] G2D: head:d0000000,tail:d1000000
<6>G2D: Module initialized.major:250

[    1.446839] G2D: Module initialized.major:250
<6>brd: module loaded

[    1.454165] brd: module loaded
<6>loop: module loaded

[    1.462833] loop: module loaded
<6>sw_ahci sw_ahci.0: controller can't do PMP, turning off CAP_PMP

[    1.472335] sw_ahci sw_ahci.0: controller can't do PMP, turning off CAP_PMP
<6>ahci: SSS flag set, parallel bus scan disabled

[    1.483797] ahci: SSS flag set, parallel bus scan disabled
<6>sw_ahci sw_ahci.0: AHCI 0001.0100 32 slots 1 ports 3 Gbps 0x1 impl platform mode

[    1.496712] sw_ahci sw_ahci.0: AHCI 0001.0100 32 slots 1 ports 3 Gbps 0x1 impl platform mode
<6>sw_ahci sw_ahci.0: flags: ncq sntf stag pm led clo only pio slum part ccc

[    1.512018] sw_ahci sw_ahci.0: flags: ncq sntf stag pm led clo only pio slum part ccc
<6>scsi0 : sw_ahci_platform

[    1.523929] scsi0 : sw_ahci_platform
<6>ata1: SATA max UDMA/133 mmio [mem 0x01c18000-0x01c18fff] port 0x100 irq 88

[    1.534691] ata1: SATA max UDMA/133 mmio [mem 0x01c18000-0x01c18fff] port 0x100 irq 88
<6>sunxi_emac Using mii phy on PortA

[    1.546163] sunxi_emac Using mii phy on PortA
<6>sunxi_emac Using MAC from SID: 02:95:04:82:92:e2[    1.565310] sunxi_emac Using MAC from SID: 02:95:04:82:92:e2<6>PPP generic driver version 2.4.2


[    1.575959] PPP generic driver version 2.4.2
<6>PPP BSD Compression module registered

[    1.584330] PPP BSD Compression module registered
<6>PPP Deflate Compression module registered

[    1.593051] PPP Deflate Compression module registered
<6>PPP MPPE Compression module registered

[    1.603005] PPP MPPE Compression module registered
<6>NET: Registered protocol family 24

[    1.611227] NET: Registered protocol family 24
<6>ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver

[    1.621484] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
<6>ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver

[    1.633225] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[sw-ehci1]: open clock

[sw-ehci1]: Set USB Power ON

<6>sw-ehci sw-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver

[    1.670959] sw-ehci sw-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
<6>sw-ehci sw-ehci.1: new USB bus registered, assigned bus number 1

[    1.684650] sw-ehci sw-ehci.1: new USB bus registered, assigned bus number 1
<6>sw-ehci sw-ehci.1: irq 71, io mem 0x01c14000

[    1.697397] sw-ehci sw-ehci.1: irq 71, io mem 0x01c14000
<6>sw-ehci sw-ehci.1: USB 2.0 started, EHCI 1.00

[    1.719459] sw-ehci sw-ehci.1: USB 2.0 started, EHCI 1.00
<6>hub 1-0:1.0: USB hub found

[    1.728299] hub 1-0:1.0: USB hub found
<6>hub 1-0:1.0: 1 port detected

[    1.734932] hub 1-0:1.0: 1 port detected
[sw-ohci1]: open clock

<6>sw-ohci sw-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver

[    1.767609] sw-ohci sw-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
<6>sw-ohci sw-ohci.1: new USB bus registered, assigned bus number 2

[    1.780946] sw-ohci sw-ohci.1: new USB bus registered, assigned bus number 2
<6>sw-ohci sw-ohci.1: irq 96, io mem 0x01c14400

[    1.792308] sw-ohci sw-ohci.1: irq 96, io mem 0x01c14400
<6>hub 2-0:1.0: USB hub found

[    1.862460] hub 2-0:1.0: USB hub found
<6>hub 2-0:1.0: 1 port detected

[    1.869128] hub 2-0:1.0: 1 port detected
[sw-ehci2]: open clock

<6>ata1: SATA link down (SStatus 0 SControl 300)

[    1.889472] ata1: SATA link down (SStatus 0 SControl 300)
[sw-ehci2]: Set USB Power ON

<6>sw-ehci sw-ehci.2: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver

[    1.904810] sw-ehci sw-ehci.2: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
<6>sw-ehci sw-ehci.2: new USB bus registered, assigned bus number 3

[    1.918513] sw-ehci sw-ehci.2: new USB bus registered, assigned bus number 3
<6>sw-ehci sw-ehci.2: irq 72, io mem 0x01c1c000

[    1.931179] sw-ehci sw-ehci.2: irq 72, io mem 0x01c1c000
<6>sw-ehci sw-ehci.2: USB 2.0 started, EHCI 1.00

[    1.959459] sw-ehci sw-ehci.2: USB 2.0 started, EHCI 1.00
<6>hub 3-0:1.0: USB hub found

[    1.968306] hub 3-0:1.0: USB hub found
<6>hub 3-0:1.0: 1 port detected

[    1.974940] hub 3-0:1.0: 1 port detected
[sw-ohci2]: open clock

<6>sw-ohci sw-ohci.2: SW USB2.0 'Open' Host Controller (OHCI) Driver

[    2.007627] sw-ohci sw-ohci.2: SW USB2.0 'Open' Host Controller (OHCI) Driver
<6>sw-ohci sw-ohci.2: new USB bus registered, assigned bus number 4

[    2.021006] sw-ohci sw-ohci.2: new USB bus registered, assigned bus number 4
<6>sw-ohci sw-ohci.2: irq 97, io mem 0x01c1c400

[    2.032389] sw-ohci sw-ohci.2: irq 97, io mem 0x01c1c400
<6>hub 4-0:1.0: USB hub found

[    2.102511] hub 4-0:1.0: USB hub found
<6>hub 4-0:1.0: 1 port detected

[    2.109192] hub 4-0:1.0: 1 port detected
<6>mousedev: PS/2 mouse device common for all mice

[    2.118167] mousedev: PS/2 mouse device common for all mice
===========================hv_keypad_init=====================

========HV Inital ===================

<3>tkey_fetch_sysconfig_para: tkey_unused.

[    2.136673] tkey_fetch_sysconfig_para: tkey_unused.
hv_keypad_init: after fetch_sysconfig_para:  normal_i2c: 0x0. normal_i2c[1]: 0x0

<3>sunxi-rtc sunxi-rtc: Error: Set LOSC to external failed.

[    2.154523] sunxi-rtc sunxi-rtc: Error: Set LOSC to external failed.
<3>sunxi-rtc sunxi-rtc: Warning: RTC time will be wrong!

[    2.165933] sunxi-rtc sunxi-rtc: Warning: RTC time will be wrong!
<6>sunxi-rtc sunxi-rtc: rtc core: registered rtc as rtc0

[    2.177349] sunxi-rtc sunxi-rtc: rtc core: registered rtc as rtc0
<6>i2c /dev entries driver

[    2.185953] i2c /dev entries driver
config i2c gpio with gpio_config api

<6>axp_mfd 0-0034: AXP (CHIP ID: 0x41) detected

[    2.198698] axp_mfd 0-0034: AXP (CHIP ID: 0x41) detected
<6>axp_mfd 0-0034: AXP internal temperature monitoring enabled

[    2.209830] axp_mfd 0-0034: AXP internal temperature monitoring enabled
[AXP]axp driver uning configuration failed(342)

[AXP]power_start = 0

<4>i2c i2c-0: Invalid probe address 0x00

[    2.227151] i2c i2c-0: Invalid probe address 0x00
<6>I2C: i2c-0: AW16XX I2C adapter

[    2.234927] I2C: i2c-0: AW16XX I2C adapter
config i2c gpio with gpio_config api

<4>i2c i2c-1: Invalid probe address 0x00

[    2.246339] i2c i2c-1: Invalid probe address 0x00
<6>I2C: i2c-1: AW16XX I2C adapter

[    2.254109] I2C: i2c-1: AW16XX I2C adapter
[ace_drv] start!!!

[ace_drv] init end!!!

[pa_drv] start!!!

[pa_drv] init end!!!

<6>axp20_ldo1: 1300 mV

[    2.268569] axp20_ldo1: 1300 mV
<6>axp20_ldo2: 1800 <--> 3300 mV at 3000 mV

[    2.276995] axp20_ldo2: 1800 <--> 3300 mV at 3000 mV
<6>axp20_ldo3: 700 <--> 3500 mV at 2800 mV

[    2.287119] axp20_ldo3: 700 <--> 3500 mV at 2800 mV
<6>axp20_ldo4: 1250 <--> 3300 mV at 2800 mV

[    2.297211] axp20_ldo4: 1250 <--> 3300 mV at 2800 mV
<6>axp20_buck2: 700 <--> 2275 mV at 1400 mV

[    2.307413] axp20_buck2: 700 <--> 2275 mV at 1400 mV
<6>axp20_buck3: 700 <--> 3500 mV at 1250 mV

[    2.317612] axp20_buck3: 700 <--> 3500 mV at 1250 mV
<6>axp20_ldoio0: 1800 <--> 3300 mV at 2800 mV

[    2.327495] axp20_ldoio0: 1800 <--> 3300 mV at 2800 mV
<6>input: axp20-supplyer as /devices/platform/sunxi-i2c.0/i2c-0/0-0034/axp20-supplyer.28/input/input0

[    2.342282] input: axp20-supplyer as /devices/platform/sunxi-i2c.0/i2c-0/0-0034/axp20-supplyer.28/input/input0
<4>axp20_ldo2: Failed to create debugfs directory

[    2.370447] axp20_ldo2: Failed to create debugfs directory
<6>device-mapper: uevent: version 1.0.3

[    2.380831] device-mapper: uevent: version 1.0.3
<6>device-mapper: ioctl: 4.22.0-ioctl (2011-10-19) initialised: dm-devel@redhat.com

[    2.393261] device-mapper: ioctl: 4.22.0-ioctl (2011-10-19) initialised: dm-devel@redhat.com
<6>device-mapper: multipath: version 1.3.0 loaded

[    2.406654] device-mapper: multipath: version 1.3.0 loaded
<6>device-mapper: multipath round-robin: version 1.0.0 loaded

[    2.417638] device-mapper: multipath round-robin: version 1.0.0 loaded
<6>device-mapper: multipath queue-length: version 0.1.0 loaded

[    2.429727] device-mapper: multipath queue-length: version 0.1.0 loaded
<6>device-mapper: multipath service-time: version 0.2.0 loaded

[    2.441902] device-mapper: multipath service-time: version 0.2.0 loaded
<6>cpuidle: using governor ladder

[    2.451951] cpuidle: using governor ladder
<6>cpuidle: using governor menu

[    2.458940] cpuidle: using governor menu
<6>[mmc-msg] sw_mci_init

[    2.465178] [mmc-msg] sw_mci_init
<6>[mmc-msg] MMC host used card: 0x1, boot card: 0x0, io_card 0

[    2.474214] [mmc-msg] MMC host used card: 0x1, boot card: 0x0, io_card 0
<6>[mmc-msg] sdc0 set round clock 400000, src 24000000

[    2.486618] [mmc-msg] sdc0 set round clock 400000, src 24000000
<6>[mmc-msg] sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    2.500910] [mmc-msg] sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 Probe: base:0xf00e4000 irq:64 sg_cpu:c3c5f000(43c5f000) ret 0.

[    2.518191] [mmc-msg] sdc0 Probe: base:0xf00e4000 irq:64 sg_cpu:c3c5f000(43c5f000) ret 0.
[mmc_pm]: failed to fetch sdio card configuration!

<6>ledtrig-cpu: registered to indicate activity on CPUs

[    2.535927] ledtrig-cpu: registered to indicate activity on CPUs
<6>usbcore: registered new interface driver usbhid

[    2.547060] usbcore: registered new interface driver usbhid
<6>usbhid: USB HID core driver

[    2.555436] usbhid: USB HID core driver
<6>ashmem: initialized

[    2.561929] ashmem: initialized
<6>logger: created 256K log 'log_main'

[    2.568703] logger: created 256K log 'log_main'
<6>logger: created 256K log 'log_events'

[    2.576994] logger: created 256K log 'log_events'
<6>logger: created 256K log 'log_radio'

[    2.585402] logger: created 256K log 'log_radio'
<6>logger: created 256K log 'log_system'

[    2.593782] logger: created 256K log 'log_system'
<6>IPv4 over IPv4 tunneling driver

[    2.605092] IPv4 over IPv4 tunneling driver
<6>TCP: bic registered

[    2.612058] TCP: bic registered
<6>TCP: cubic registered

[    2.617494] TCP: cubic registered
<6>TCP: westwood registered

[    2.623327] TCP: westwood registered
<6>TCP: highspeed registered

[    2.629520] TCP: highspeed registered
<6>TCP: hybla registered

[    2.635441] TCP: hybla registered
<6>TCP: htcp registered

[    2.640939] TCP: htcp registered
<6>TCP: vegas registered

[    2.646426] TCP: vegas registered
<6>TCP: veno registered

[    2.651924] TCP: veno registered
<6>TCP: scalable registered

[    2.657682] TCP: scalable registered
<6>TCP: lp registered

[    2.663255] TCP: lp registered
<6>TCP: yeah registered

[    2.668493] TCP: yeah registered
<6>TCP: illinois registered

[    2.674239] TCP: illinois registered
<6>Initializing XFRM netlink socket

[    2.681039] Initializing XFRM netlink socket
<6>NET: Registered protocol family 10

[    2.689337] NET: Registered protocol family 10
<6>NET: Registered protocol family 17

[    2.698230] NET: Registered protocol family 17
<6>NET: Registered protocol family 15

[    2.706148] NET: Registered protocol family 15
[mmc_pm]: No sdio card, please check your config !!

<5>Registering the dns_resolver key type

[    2.718954] Registering the dns_resolver key type
<6>VFP support v0.3: [    2.725631] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 4

implementor 41 architecture 2 part 30 variant 7 rev 4
<5>Registering SWP/SWPB emulation handler

[    2.741862] Registering SWP/SWPB emulation handler
<4>axp20_buck2: Failed to create debugfs directory

[    2.751268] axp20_buck2: Failed to create debugfs directory
<6>[cpu_freq] INF:-------------------V-F Table-------------------

[    2.763009] [cpu_freq] INF:-------------------V-F Table-------------------
<6>[cpu_freq] INF:	voltage = 1450mv 	frequency = 1008MHz

[    2.774936] [cpu_freq] INF:	voltage = 1450mv 	frequency = 1008MHz
<6>[cpu_freq] INF:	voltage = 1400mv 	frequency =  912MHz

[    2.786070] [cpu_freq] INF:	voltage = 1400mv 	frequency =  912MHz
<6>[cpu_freq] INF:	voltage = 1300mv 	frequency =  864MHz

[    2.797203] [cpu_freq] INF:	voltage = 1300mv 	frequency =  864MHz
<6>[cpu_freq] INF:	voltage = 1200mv 	frequency =  720MHz

[    2.808335] [cpu_freq] INF:	voltage = 1200mv 	frequency =  720MHz
<6>[cpu_freq] INF:	voltage = 1100mv 	frequency =  528MHz

[    2.819467] [cpu_freq] INF:	voltage = 1100mv 	frequency =  528MHz
<6>[cpu_freq] INF:	voltage = 1050mv 	frequency =  312MHz

[    2.830600] [cpu_freq] INF:	voltage = 1050mv 	frequency =  312MHz
<6>[cpu_freq] INF:	voltage = 1050mv 	frequency =  144MHz

[    2.841731] [cpu_freq] INF:	voltage = 1050mv 	frequency =  144MHz
<6>[cpu_freq] INF:	voltage = 1000mv 	frequency =    0MHz

[    2.852863] [cpu_freq] INF:	voltage = 1000mv 	frequency =    0MHz
<6>[cpu_freq] INF:-----------------------------------------------

[    2.864774] [cpu_freq] INF:-----------------------------------------------
<6>[cpu_freq] INF:sunxi_cpufreq_initcall, get cpu frequency from sysconfig, max freq: 912MHz, min freq: 384MHz

[    2.881375] [cpu_freq] INF:sunxi_cpufreq_initcall, get cpu frequency from sysconfig, max freq: 912MHz, min freq: 384MHz
<6>registered taskstats version 1

[    2.895874] registered taskstats version 1
<4>[DISP] lcd0_para.lcd_swap not exist

[    2.904124] [DISP] lcd0_para.lcd_swap not exist
<6>[mmc-msg] mmc 0 detect change, present 1

[    3.494004] [mmc-msg] mmc 0 detect change, present 1
<6>Console: switching to colour frame buffer device 128x37

[    3.857183] Console: switching to colour frame buffer device 128x37
<6>I2C: i2c-2: HDMI I2C adapter

[    3.879361] I2C: i2c-2: HDMI I2C adapter
<4>axp20_buck3: incomplete constraints, leaving on

[    3.910314] axp20_buck3: incomplete constraints, leaving on
<4>axp20_buck2: incomplete constraints, leaving on

[    3.920659] axp20_buck2: incomplete constraints, leaving on
<4>axp20_ldo4: incomplete constraints, leaving on

[    3.930914] axp20_ldo4: incomplete constraints, leaving on
<4>axp20_ldo3: incomplete constraints, leaving on

[    3.941076] axp20_ldo3: incomplete constraints, leaving on
<4>axp20_ldo2: incomplete constraints, leaving on

[    3.951241] axp20_ldo2: incomplete constraints, leaving on
<4>axp20_ldo1: incomplete constraints, leaving on

[    3.961401] axp20_ldo1: incomplete constraints, leaving on
<6>console [netcon0] enabled

[    3.969786] console [netcon0] enabled
<6>netconsole: network logging started

[    3.976924] netconsole: network logging started
<6>sunxi-rtc sunxi-rtc: setting system clock to 2010-01-01 00:00:00 UTC (1262304000)

[    3.988991] sunxi-rtc sunxi-rtc: setting system clock to 2010-01-01 00:00:00 UTC (1262304000)
<6>[mmc-msg] sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.005462] [mmc-msg] sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>ALSA device list:

[    4.016456] ALSA device list:
<6>  #0: sunxi-CODEC  Audio Codec

[    4.022483]   #0: sunxi-CODEC  Audio Codec
<6>[mmc-msg] sdc0 power on

[    4.029033] [mmc-msg] sdc0 power on
<6>Waiting for root device /dev/mmcblk0p2...

[    4.038338] Waiting for root device /dev/mmcblk0p2...
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.053483] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 set round clock 400000, src 24000000

[    4.067802] [mmc-msg] sdc0 set round clock 400000, src 24000000
<3>[mmc-err] smc 0 err, cmd 52,  RTO

[    4.150769] [mmc-err] smc 0 err, cmd 52,  RTO
<3>[mmc-err] smc 0 err, cmd 52,  RTO

[    4.159261] [mmc-err] smc 0 err, cmd 52,  RTO
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.171969] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.192085] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<3>[mmc-err] smc 0 err, cmd 5,  RTO

[    4.206831] [mmc-err] smc 0 err, cmd 5,  RTO
<3>[mmc-err] smc 0 err, cmd 5,  RTO

[    4.215136] [mmc-err] smc 0 err, cmd 5,  RTO
<3>[mmc-err] smc 0 err, cmd 5,  RTO

[    4.223443] [mmc-err] smc 0 err, cmd 5,  RTO
<3>[mmc-err] smc 0 err, cmd 5,  RTO

[    4.231748] [mmc-err] smc 0 err, cmd 5,  RTO
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.244995] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.262765] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B

[    4.282920] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
<6>[mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing SD-HS(SDR25) dt B

[    4.326054] [mmc-msg] sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing SD-HS(SDR25) dt B
<6>[mmc-msg] sdc0 set ios: clk 50000000Hz bm PP pm ON vdd 3.3V width 1 timing SD-HS(SDR25) dt B

[    4.343791] [mmc-msg] sdc0 set ios: clk 50000000Hz bm PP pm ON vdd 3.3V width 1 timing SD-HS(SDR25) dt B
<6>[mmc-msg] sdc0 set round clock 42857143, src 600000000

[    4.358419] [mmc-msg] sdc0 set round clock 42857143, src 600000000
<6>[mmc-msg] sdc0 set ios: clk 50000000Hz bm PP pm ON vdd 3.3V width 4 timing SD-HS(SDR25) dt B

[    4.428096] [mmc-msg] sdc0 set ios: clk 50000000Hz bm PP pm ON vdd 3.3V width 4 timing SD-HS(SDR25) dt B
<6>mmc0: new high speed SDHC card at address 59b4

[    4.442024] mmc0: new high speed SDHC card at address 59b4
<6>mmcblk0: mmc0:59b4 00000 7.47 GiB

[    4.451540] mmcblk0: mmc0:59b4 00000 7.47 GiB
<6> mmcblk0: p1 p2

[    4.459189]  mmcblk0: p1 p2
<6>kjournald starting.  Commit interval 5 seconds

<6>EXT3-fs (mmcblk0p2): using internal journal

[    4.705016] kjournald starting.  Commit interval 5 seconds
[   < 4.709203] EXT3-fs (mmcblk0p2): using internal journal
6>EXT3-fs (mmcblk0p2): recovery complete

[ <   4.723634] EXT3-fs (mmcblk0p2): recovery complete
6>EXT3-fs (mmcblk0p2): mounted filesystem with ordered data mode

[ <   4.734224] EXT3-fs (mmcblk0p2): mounted filesystem with ordered data mode
6>VFS: Mounted root (ext3 filesystem) on device 179:2.

[    4.746037] VFS: Mounted root (ext3 fil<esystem) on device 179:2.
6>devtmpfs: mounted

[   < 4.753949] devtmpfs: mounted
6>Freeing init memory: 212K

[    4.759515] Freeing init memory: 212K
<30>systemd[1]: systemd 219 running in system mode. (+PAM -AUDIT -SELINUX +IMA -APPARMOR +SMACK +SYSVINIT +UTMP -LIBCRYPTSETUP -GCRYPT +GNUTLS +ACL +XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD +IDN)

[    5.102583] systemd[1]: systemd 219 running in system mode. (+PAM -AUDIT -SELINUX +IMA -APPARMOR +SMACK +SYSVINIT +UTMP -LIBCRYPTSETUP -GCRYPT +GNUTLS +ACL +XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD +IDN)
<30>systemd[1]: Detected architecture arm.

[    5.124888] systemd[1]: Detected architecture arm.

Welcome to The Ångström Distribution 15340!

<30>systemd[1]: Set hostname to <openvario-7lvds>.

[    5.160886] systemd[1]: Set hostname to <openvario-7lvds>.
<28>systemd-fstab-generator[64]: Checking was requested for "rootfs", but it is not a device.

[    5.218708] systemd-fstab-generator[64]: Checking was requested for "rootfs", but it is not a device.
<28>systemd[1]: Cannot add dependency job for unit org.freedesktop.resolve1.busname, ignoring: Unit org.freedesktop.resolve1.busname failed to load: No such file or directory.

[    5.536701] systemd[1]: Cannot add dependency job for unit org.freedesktop.resolve1.busname, ignoring: Unit org.freedesktop.resolve1.busname failed to load: No such file or directory.
[  OK  ] Created slice Root Slice.
<30>systemd[1]: Created slice Root Slice.

[    5.579086] systemd[1]: Created slice Root Slice.
<30>systemd[1]: Starting Root Slice.

[    5.587200] systemd[1]: Starting Root Slice.
[  OK  ] Listening on udev Control Socket.
<30>systemd[1]: Listening on udev Control Socket.

[    5.604707] systemd[1]: Listening on udev Control Socket.
<30>systemd[1]: Starting udev Control Socket.

[    5.614316] systemd[1]: Starting udev Control Socket.
[  OK  ] Reached target Swap.
<30>systemd[1]: Reached target Swap.

[    5.638542] systemd[1]: Reached target Swap.
<30>systemd[1]: Starting Swap.

[    5.645667] systemd[1]: Starting Swap.
<30>systemd[1]: Started Forward Password Requests to Wall Directory Watch.

[    5.656485] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
<30>systemd[1]: Starting Forward Password Requests to Wall Directory Watch.

[    5.670840] systemd[1]: Starting Forward Password Requests to Wall Directory Watch.
[  OK  ] Listening on Journal Socket (/dev/log).
<30>systemd[1]: Listening on Journal Socket (/dev/log).

[    5.700208] systemd[1]: Listening on Journal Socket (/dev/log).
<30>systemd[1]: Starting Journal Socket (/dev/log).

[    5.710839] systemd[1]: Starting Journal Socket (/dev/log).
[  OK  ] Listening on Syslog Socket.
<30>systemd[1]: Listening on Syslog Socket.

[    5.739154] systemd[1]: Listening on Syslog Socket.
<30>systemd[1]: Starting Syslog Socket.

[    5.747683] systemd[1]: Starting Syslog Socket.
[  OK  ] Listening on Delayed Shutdown Socket.
<30>systemd[1]: Listening on Delayed Shutdown Socket.

[    5.780022] systemd[1]: Listening on Delayed Shutdown Socket.
<30>systemd[1]: Starting Delayed Shutdown Socket.

[    5.790314] systemd[1]: Starting Delayed Shutdown Socket.
[  OK  ] Listening on Journal Audit Socket.
<30>systemd[1]: Listening on Journal Audit Socket.

[    5.819759] systemd[1]: Listening on Journal Audit Socket.
<30>systemd[1]: Starting Journal Audit Socket.

[    5.829521] systemd[1]: Starting Journal Audit Socket.
[  OK  ] Created slice User and Session Slice.
<30>systemd[1]: Created slice User and Session Slice.

[    5.860026] systemd[1]: Created slice User and Session Slice.
<30>systemd[1]: Starting User and Session Slice.

[    5.870241] systemd[1]: Starting User and Session Slice.
[  OK  ] Listening on Journal Socket.
<30>systemd[1]: Listening on Journal Socket.

[    5.904275] systemd[1]: Listening on Journal Socket.
<30>systemd[1]: Starting Journal Socket.

[    5.913033] systemd[1]: Starting Journal Socket.
[  OK  ] Listening on networkd rtnetlink socket.
<30>systemd[1]: Listening on networkd rtnetlink socket.

[    5.940222] systemd[1]: Listening on networkd rtnetlink socket.
<30>systemd[1]: Starting networkd rtnetlink socket.

[    5.950869] systemd[1]: Starting networkd rtnetlink socket.
[  OK  ] Listening on udev Kernel Socket.
<30>systemd[1]: Listening on udev Kernel Socket.

[    5.979590] systemd[1]: Listening on udev Kernel Socket.
<30>systemd[1]: Starting udev Kernel Socket.

[    5.988987] systemd[1]: Starting udev Kernel Socket.
[  OK  ] Created slice System Slice.
<30>systemd[1]: Created slice System Slice.

[    6.019169] systemd[1]: Created slice System Slice.
<30>systemd[1]: Starting System Slice.

[    6.027654] systemd[1]: Starting System Slice.
<30>systemd[1]: Starting Remount Root and Kernel File Systems...

[    6.051735] systemd[1]: Starting Remount Root and Kernel File Systems...
         Starting Remount Root and Kernel File Systems...
<30>systemd[1]: Starting Create list of required static device nodes for the current kernel...

[    6.124471] systemd[1]: Starting Create list of required static device nodes for the current kernel...
         Starting Create list of required st... nodes for the current kernel...
<30>systemd[1]: Starting udev Coldplug all Devices...

[    6.180746] systemd[1]: Starting udev Coldplug all Devices...
         Starting udev Coldplug all Devices...
<30>systemd[1]: Starting Setup Virtual Console...

[    6.221895] systemd[1]: Starting Setup Virtual Console...
         Starting Setup Virtual Console...
[  OK  ] Created slice system-getty.slice.
<30>systemd[1]: Created slice system-getty.slice.

[    6.269797] systemd[1]: Created slice system-getty.slice.
<30>systemd[1]: Starting system-getty.slice.

[    6.279376] systemd[1]: Starting system-getty.slice.
<30>systemd[1]: Starting Journal Service...

[    6.308588] systemd[1]: Starting Journal Service...
         Starting Journal Service...
<30>systemd[1]: Mounted POSIX Message Queue File System.

[    6.330525] systemd[1]: Mounted POSIX Message Queue File System.
<30>systemd[1]: Mounted Huge Pages File System.

[    6.341512] systemd[1]: Mounted Huge Pages File System.
<30>systemd[1]: Started Bind mount volatile /var/lib.

[    6.353061] systemd[1]: Started Bind mount volatile /var/lib.
<30>systemd[1]: Starting Load Kernel Modules...

[    6.380777] systemd[1]: Starting Load Kernel Modules...
         Starting Load Kernel Modules...
[  OK  ] Created slice system-serial\x2dgetty.slice.
<30>systemd[1]: Created slice system-serial\x2dgetty.slice.

[    6.430680] systemd[1]: Created slice system-serial\x2dgetty.slice.
<30>systemd[1]: Starting system-serial\x2dgetty.slice.

[    6.442508] systemd[1]: Starting system-serial\x2dgetty.slice.
<30>systemd[1]: Mounting Debug File System...

[    6.469795] systemd[1]: Mounting Debug File System...
         Mounting Debug File System...
<30>systemd[1]: Started Dispatch Password Requests to Console Directory Watch.

[    6.507950] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
<30>systemd[1]: Starting Dispatch Password Requests to Console Directory Watch.

[    6.523810] systemd[1]: Starting Dispatch Password Requests to Console Directory Watch.
[  OK  ] Reached target Paths.
UMP<2>: Inserting UMP device driver. Compiled: Oct  3 2015, time: 22:16:44

<30>systemd[1]: Reached target Paths.

[    6.556661] systemd[1]: Reached target Paths.
UMP<2>: <44>systemd-journald[81]: File /var/log/journal/59a8537fb4764f0da18430e0cb1de689/system.journal corrupted or uncleanly shut down, renaming and replacing.

[    6.575635] systemd-journald[81]: File /var/log/journal/59a8537fb4764f0da18430e0cb1de689/system.journal corrupted or uncleanly shut down, renaming and replacing.
<30>systemd[1]: Starting Paths.

[    6.593202] systemd[1]: Starting Paths.
Using OS memory backend, allocation limit: 134217728

UMP: UM[  OK  ] Reached target Slices.
P device driver  loaded


<30>systemd[1]: Reached target Slices.

[    6.620286] systemd[1]: Reached target Slices.
<30>systemd[1]: Starting Slices.

[    6.628111] systemd[1]: Starting Slices.
[  OK  ] Listening on /dev/initctl Compatibility Named Pipe.
Mali: permit MALI_IOC_MEM_MAP_EXT ioctl for framebuffer (paddr=0x51000000, size=33554432)

<6>mali: use config clk_div 1

[    6.656237] mali: use config clk_div 1
<6>mali: clk_div 1

[    6.661786] mali: clk_div 1
Mali: mali clock set completed, clock is  312000000 Hz

<6>mali: use config clk_div 1

[    6.672510] mali: use config clk_div 1
<6>mali: clk_div 1

[    6.678085] mali: clk_div 1
Mali: mali clock set completed, clock is  312000000 Hz

Mali: Mali device driver loaded

<30>systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.

[    6.701367] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.
rtp_used == 1.

sun4i-ts: tp_press_threshold_enable is 0.

sun4i-ts: rtp_sensitive_level is 15.

sun4i-ts: rtp_exchange_x_y_flag is 0.

<30>systemd[1]: Starting /dev/initctl Compatibility Named Pipe.

[    6.730359] systemd[1]: Starting /dev/initctl Compatibility Named Pipe.
[  OK  <] Mounted Debug File System.
6>input: sun4i-ts as /devices/platform/sun4i-ts/input/input1

[    6.747043] input: sun4i-ts as /devices/platform/sun4i-ts/input/input1
<30>systemd[1]: Mounted Debug File System.

[    6.759284] systemd[1]: Mounted Debug File System.
[  OK  ] Started Journal Service.
<30>systemd[1]: Started Journal Service.

[    6.788959] systemd[1]: Started Journal Service.
[  OK  ] Started Remount Root and Kernel File Systems.
[  OK  ] Started Create list of required sta...ce nodes for the current kernel.
[  OK  ] Started Setup Virtual Console.
[  OK  ] Started Load Kernel Modules.
         Starting Apply Kernel Variables...
         Mounting Configuration File System...
         Mounting FUSE Control File System...
         Starting Load/Save Random Seed...
         Starting Create Static Device Nodes in /dev...
         Starting Flush Journal to Persistent Storage...
[  OK  ] Mounted FUSE Control File System.
[  OK  ] Mounted Configuration File System.
[  OK  ] Started udev Coldplug all Devices.
[  OK  ] Started Apply Kernel Variables.
[  OK  ] Started Load/Save Random Seed.
[  OK  ] Started Create Static Device Nodes in /dev.
         Starting udev Kernel Device Manager...
[  OK  ] Reached target Local File Systems (Pre).
         Mounting /tmp...
[  OK  ] Mounted /tmp.
<46>systemd-journald[81]: Received request to flush runtime journal from PID 1

[   12.449248] systemd-journald[81]: Received request to flush runtime journal from PID 1
[  OK  ] Reached target Local File Systems.
[  OK  ] Started udev Kernel Device Manager.
[  OK  ] Started Flush Journal to Persistent Storage.
         Starting Create Volatile Files and Directories...
[  OK  ] Reached target Sound Card.
[  OK  ] Found device /dev/ttyS0.
[  OK  ] Started Create Volatile Files and Directories.
         Starting Network Time Synchronization...
         Starting Update UTMP about System Boot/Shutdown...
[  OK  ] Started Network Time Synchronization.
[  OK  ] Reached target System Time Synchronized.
[  OK  ] Started Update UTMP about System Boot/Shutdown.
[  OK  ] Reached target System Initialization.
[  OK  ] Listening on RPCbind Server Activation Socket.
         Starting Restore Sound Card State...
[  OK  ] Listening on D-Bus System Message Bus Socket.
[  OK  ] Listening on Avahi mDNS/DNS-SD Stack Activation Socket.
[  OK  ] Reached target Timers.
[  OK  ] Started Restore Sound Card State.
[  OK  ] Listening on sshd.socket.
[  OK  ] Reached target Sockets.
[  OK  ] Reached target Basic System.
         Starting Variod Daemon for Openvario...
[  OK  ] Started D-Bus System Message Bus.
         Starting D-Bus System Message Bus...
         Starting Network Service...
         Starting Login Service...
[  OK  ] Started Timestamping service.
         Starting Timestamping service...
         Starting Avahi mDNS/DNS-SD Stack...
[  OK  ] Started Kernel Logging Service.
         Starting Kernel Logging Service...
[  OK  ] Started System Logging Service.
         Starting System Logging Service...
         Starting Connection service...
         Starting Sensor Daemon for Openvario Sensorboard...
[  OK  ] Started Network Service.
[  OK  ] Started Variod Daemon for Openvario.
[  OK  ] Started Sensor Daemon for Openvario Sensorboard.
[  OK  ] Started Avahi mDNS/DNS-SD Stack.
[  OK  ] Started Login Service.
         Starting Network Name Resolution...
[  OK  ] Reached target Network.
         Starting Automounts filesystems on demand...
[  OK  ] Started Network Name Resolution.
[  OK  ] Started Connection service.
[  OK  ] Reached target Remote File Systems.
         Starting Permit User Sessions...
[  OK  ] Started Permit User Sessions.
[  OK  ] Started Getty on tty1.
         Starting Getty on tty1...
[  OK  ] Started Serial Getty on ttyS0.
         Starting Serial Getty on ttyS0...
[  OK  ] Reached target Login Prompts.
[  OK  ] Started Automounts filesystems on demand.
         Starting WPA supplicant...
[  OK  ] Reached target Multi-User System.
         Starting Update UTMP about System Runlevel Changes...
[  OK  ] Started Update UTMP about System Runlevel Changes.
[  OK  ] Started WPA supplicant.


 .oOOOo.                     o      'O
.O     o.                    O       o               o
O       o                    o       O
o       O                    o       o
O       o .oOo. .oOo. 'OoOo. O      O' .oOoO' `OoOo. O  .oOo.
o       O O   o OooO'  o   O `o    o   O   o   o     o  O   o
`o     O' o   O O      O   o  `o  O    o   O   O     O  o   O
 `OoooO'  oOoO' `OoO'  o   O   `o'     `OoO'o  o     o' `OoO'
          O
          o'

The OpenVario Linux Distribution openvario-7lvds ttyS0


OpenVario-linux 15340 - Kernel 3.4.90

openvario-7lvds login: <6>sunxi_emac sunxi_emac.0: eth0: link down

[   22.909217] sunxi_emac sunxi_emac.0: eth0: link down
<6>ADDRCONF(NETDEV_UP): eth0: link is not ready

[   22.924718] ADDRCONF(NETDEV_UP): eth0: link is not ready
UMP<2>: New session opened

This website uses cookies. By using the website, you agree with storing cookies on your computer. Also you acknowledge that you have read and understand our Privacy Policy. If you do not agree leave the website.More information about cookies
