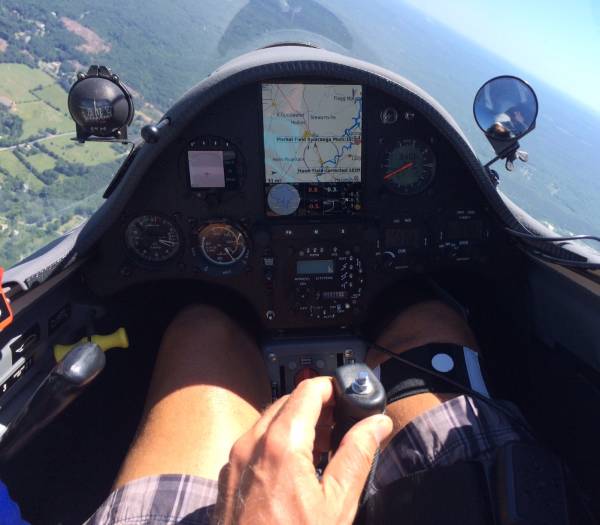

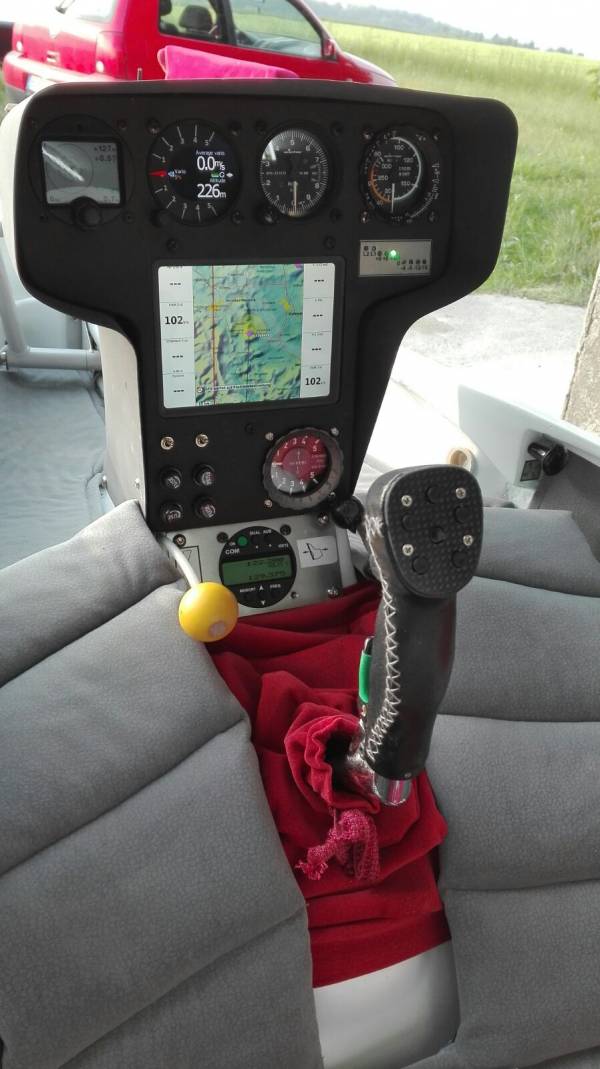

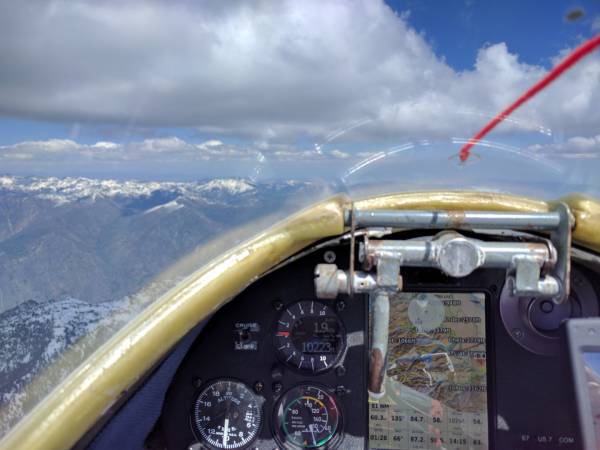

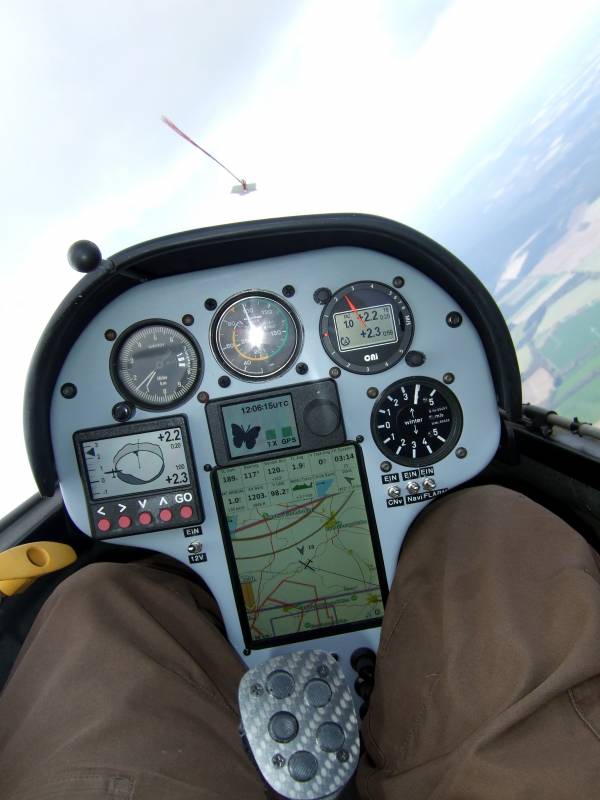

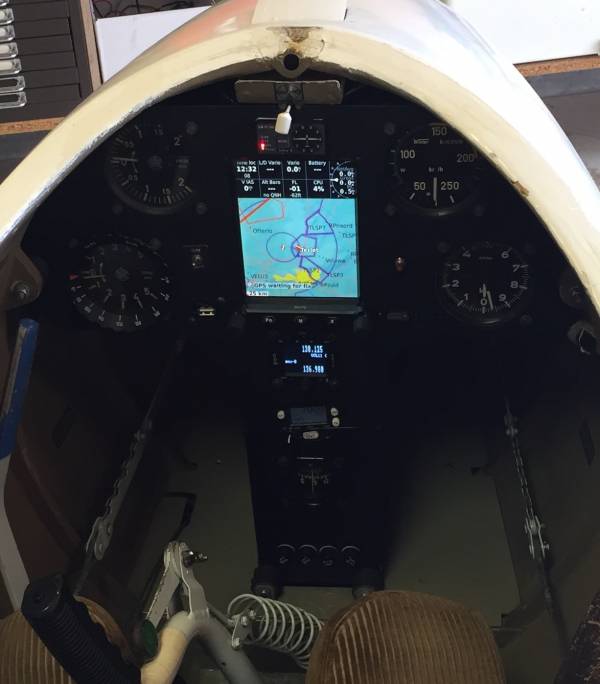

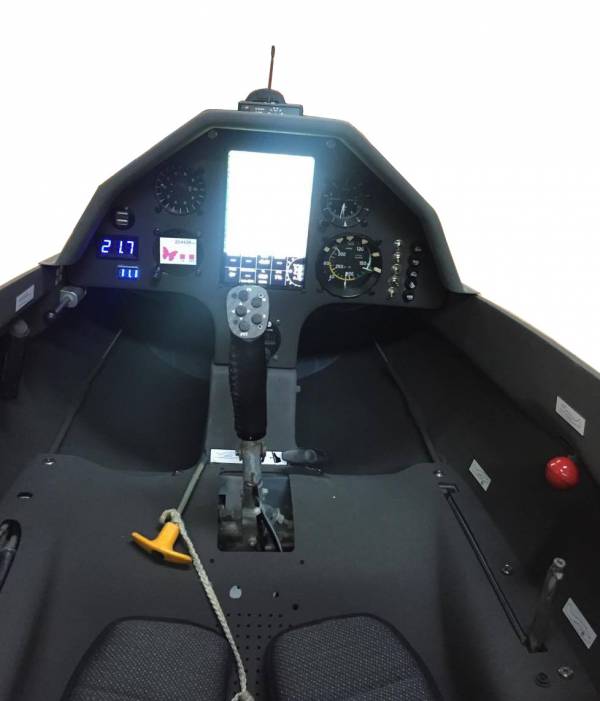

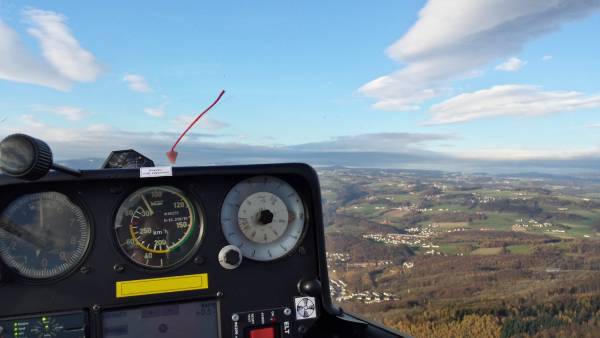

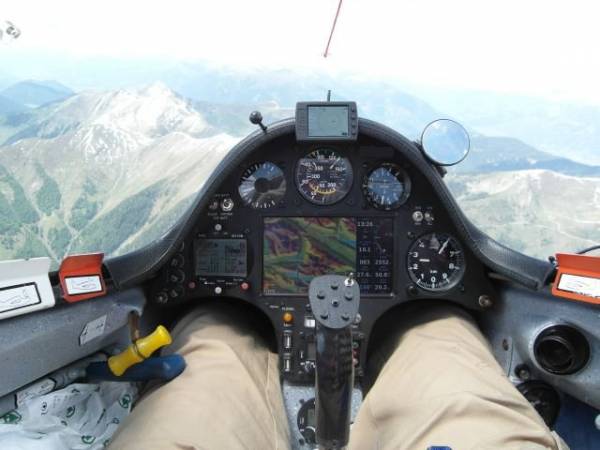

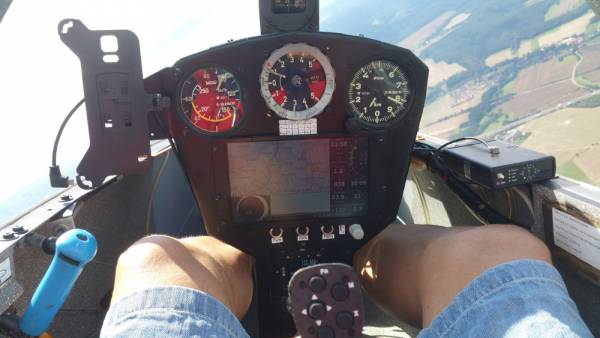

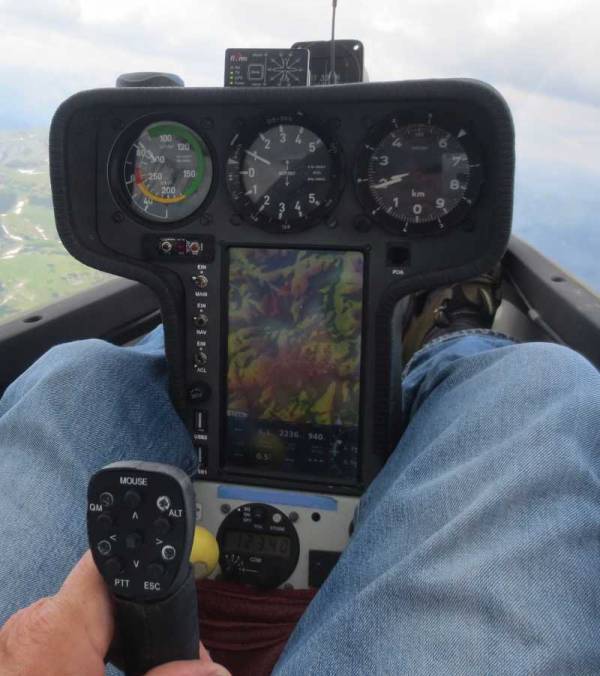

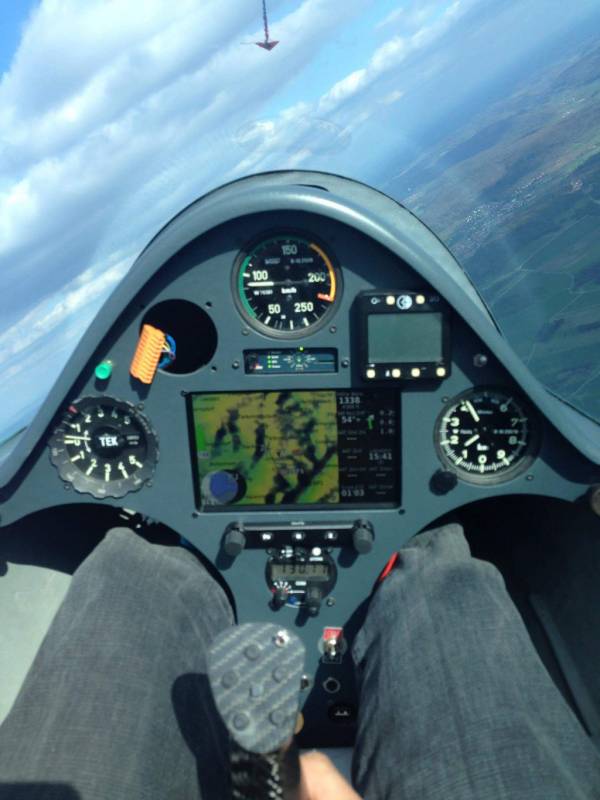

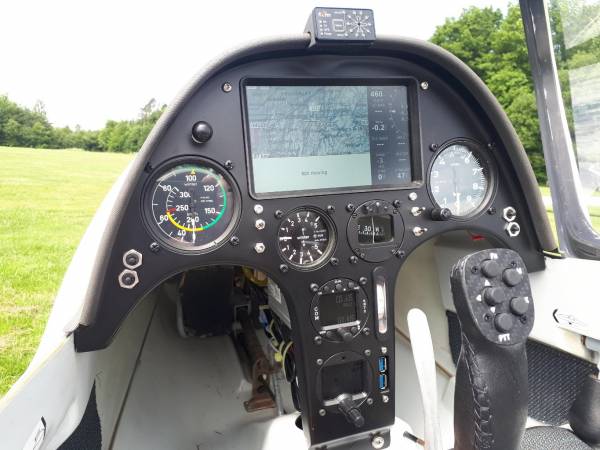

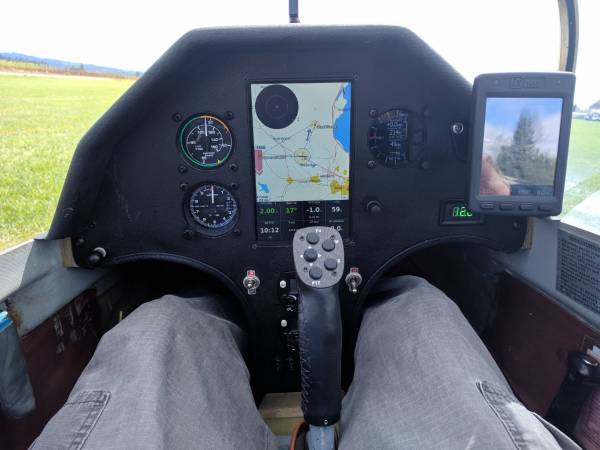

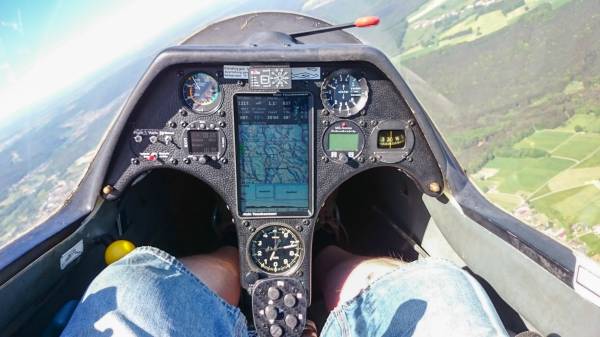

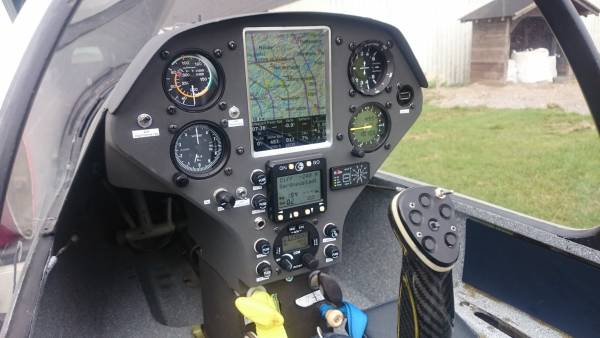

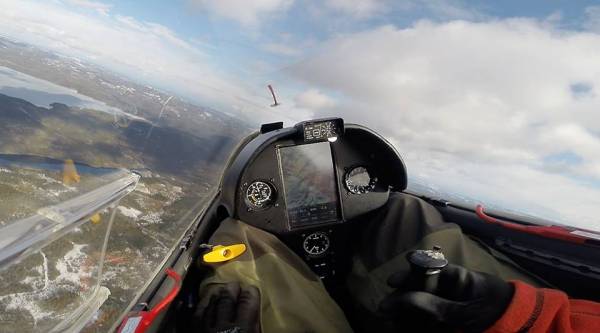

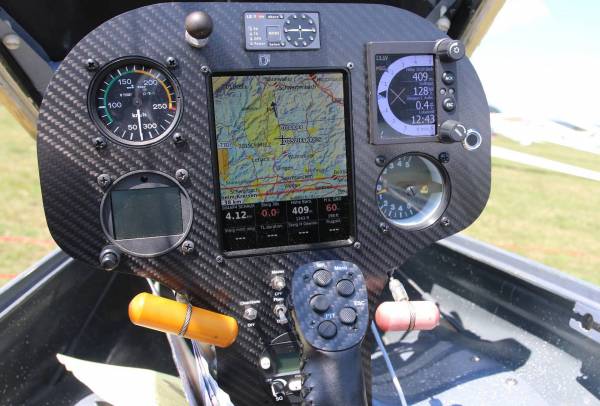

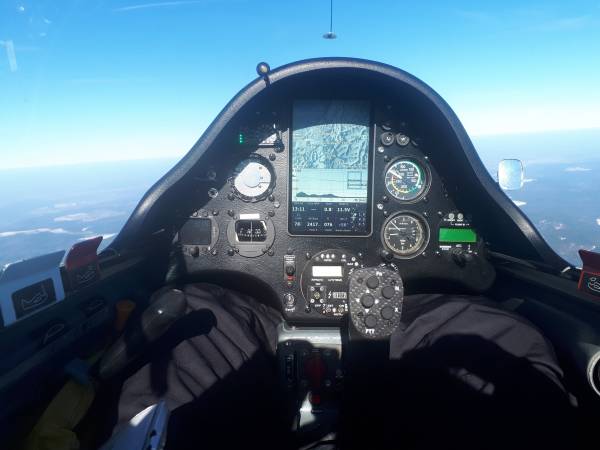

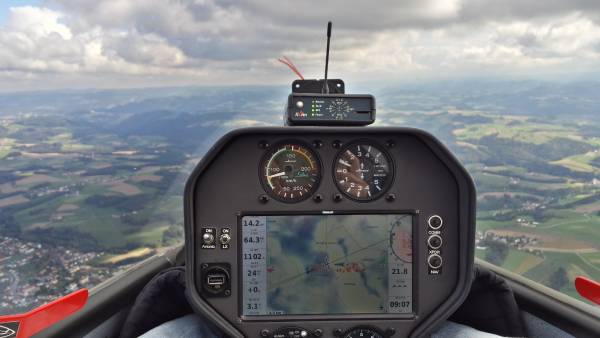

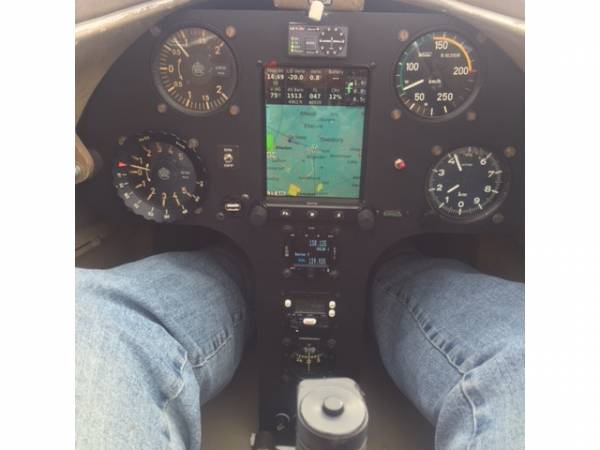

This page is intended to show installation examples of the OpenVario. It can be a real challenge to arrange instrumentation in a narrow glider cockpit. In most cases a complete re-arrangement of the cockpit will be required. In order to keep software and airspace updates simple, USB-connectors at the panel are recommended. Some builders find it useful to have paper templates of the commonly used 80 mm and 57 mm instrument cutouts. You can find more cockpit fotos here: XCSoar-OpenVario Forum Gallery

Todo: Add pdf-printable Instrument Template 80 mm and 57 mm
